300w led shoebox

300W LED Shoebox Lighting Fixture for Car Dealership Lighting, 1000W Metal Halide HPS Pole Light Replacement, Slipfitter & Direct Pole Mounted, Trunnion Mount, Dark Bronze 5000K Daylight 100-277V / 200-480V UL cUL DLC Listed

(1 customer review)

$198.00$253.00

LED shoebox flood light fixtures.

300 Watts LED. equivalent to 1000W MH HPS

Mounting options: 2-3/8″ slipfitter mount, trunnion mount, direct mount arm straight brackets available.

50,000hrs lifespan and minimal maintenance, save over 2,000USD per fixture anually.

Application: parking lot lighting, car dealership lighting, street lighting, sport court tennis court lighting and other outdoor area lighting.

Shipping: Free shipping

Delivery time: 2-4 business days.

Clear

Description

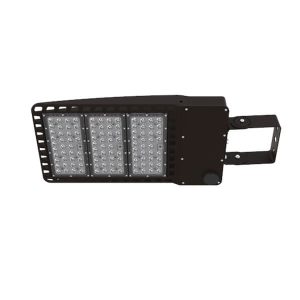

300W LED Shoebox Light

Below is the main data for the 300w parking lot LED shoebox light.

Specification

ItemLED shoebox pole light
Power300W
Operating voltageAC100-277V / 200-480V 50/60HZ
HID Replacement800W-1000W metal halide, HPS equal
Lumens39,000lm
LED brandLumiLeds  SMD 3030
Beam angle120 degree
CRI>75Ra
DriverSosen driver
Dimmable1-10V dimmable
Materialdie cast aluminum
Light distributionType III
Mountingslipfitter / direct mount (pole mounted) / trunnion mount
IP ratingwaterproof IP65
G.W.26.4lbs
DimensionL779*W340*H86mm
Lifespan50,000hrs
CertificateDLC UL  cUL listed
Warranty5 years

Product spec sheet

View datasheet

Electrical specifications:

  1. LED Quantity:  280pcs LEDs
  2. Power: 300W
  3. Input voltage: 100-277VAC
  4. Lighting source: Philips Lumileds SMD 3030 1.5W bright LEDs
  5. Driver: Sosen
  6. Frequency: 50/60HZ
  7. THD: <20%
  8. Power Factor: 0.9
  9. Working temperature: -20℃-60℃

Opitical specification:

  1. Lumens: 39000lm
  2. CCT: 5000K (daylight white)
  3. CRI: >70Ra
  4. Efficacy: 130lm/w
  5. Beam angle: 120deg.
  6. Lighting distribution: Type III
  7. Life maintenance: 95%@1000hrs
  8. Lifespan: 50,000hrs
  9. Certificate: UL, DLC
  10. Warranty: 5 years



Physical specification:

  1. Base: Hardwired
  2. Dimensions:
  3. Slipfit:30”(L)x13.4″(W)x3.38″(H)
  4. Armmount: 30.67” (L)x13.4″(W)x 3.38″(H)
  5. Housing: dark bronze aluminum housing/polycarbonate lens
  6. work enviroment: exterior use (IP65)



Special offer:

Below is the  300w LED shoebox light with motion sensor or photocell or LED shoebox fixture with other color housing like black, white housing, pls leave us message on special order quote page, we can make for you, just need some lead time.

300W LED shoebox pole light

LED shoebox fixture

Additional information

Mounting

Slip fitter for 2-3/8" round pole, arm bracket for square pole, trunnion mount

Voltage

100-277VAC, 480VAC

CCT

5000K

Voltage

100-277VAC, 200-480VAC

1 review for 300W LED Shoebox Lighting Fixture for Car Dealership Lighting, 1000W Metal Halide HPS Pole Light Replacement, Slipfitter & Direct Pole Mounted, Trunnion Mount, Dark Bronze 5000K Daylight 100-277V / 200-480V UL cUL DLC Listed

  1. John Ramper

    Happy with this deal, I will buy more for my next project
